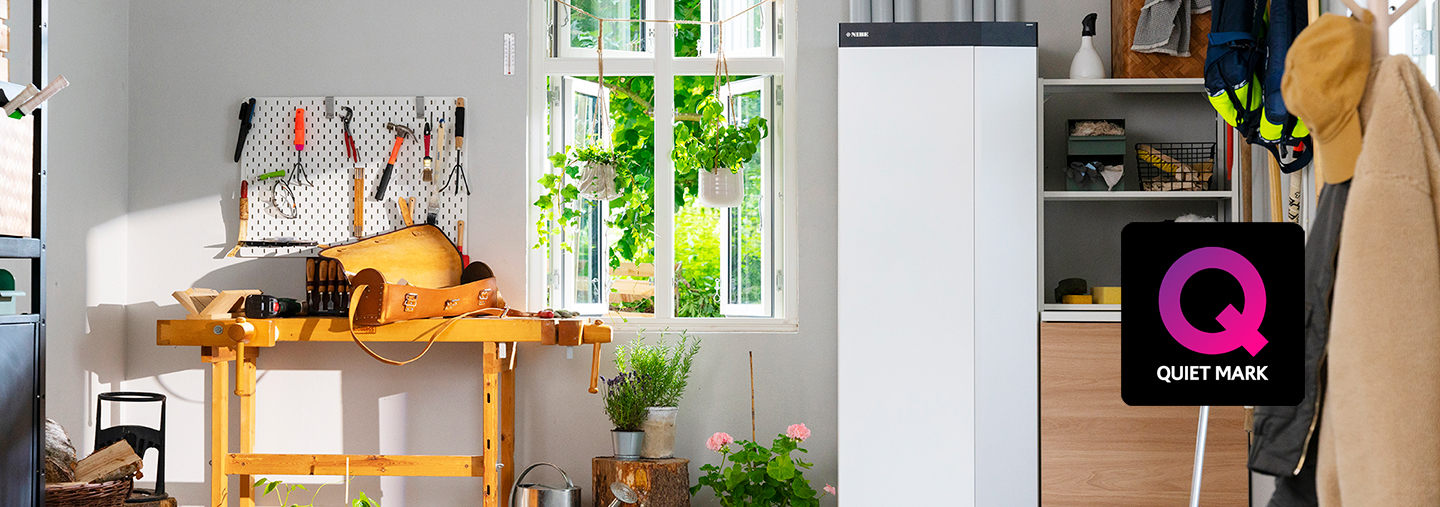

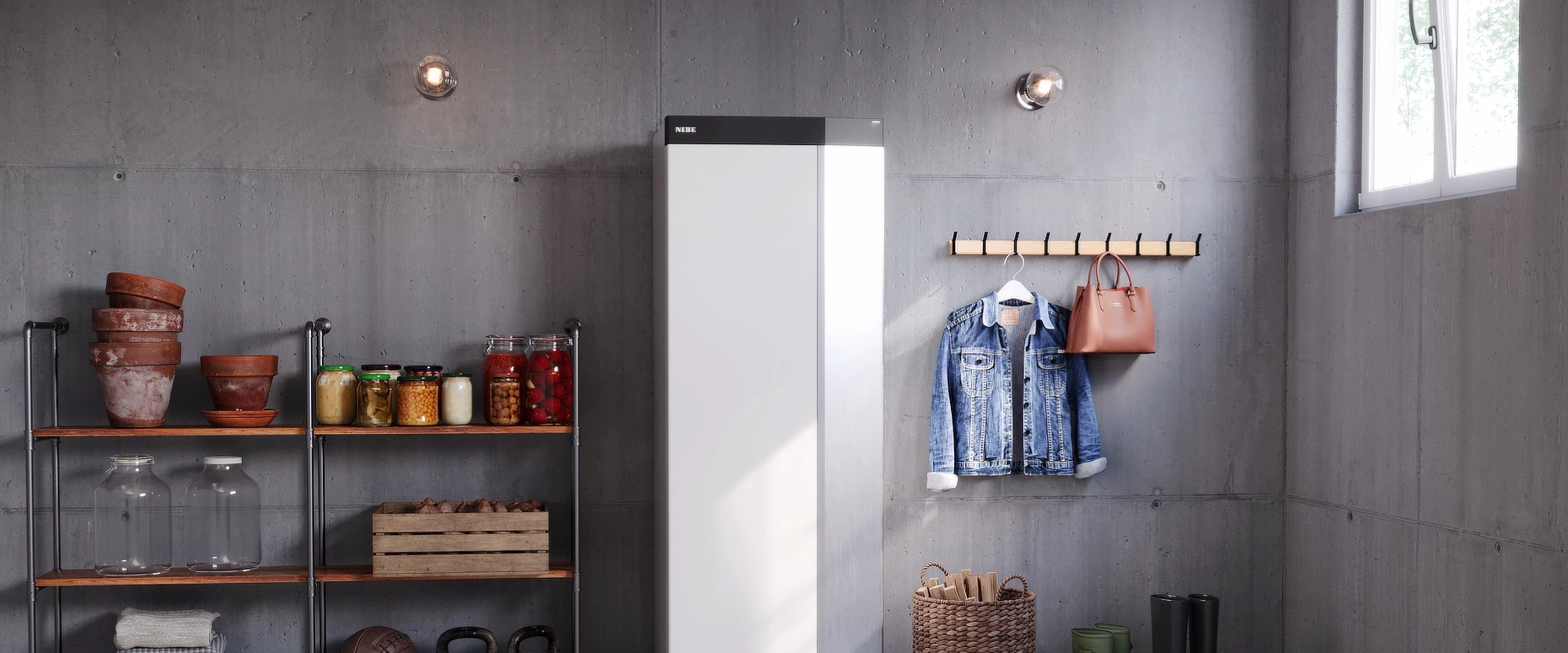

NIBE S1156

Ground Source Heat Pump
  • Product information
  • Advantages

The NIBE S1156 is an intelligent, inverter-controlled ground source heat pump with a new, more climate-friendly refrigerant and without an integrated water heater. The heat pump provides optimised savings as it automatically adapts to your home’s heating requirements. The NIBE S1156 is our most energy-efficient ground source heat pump, thanks to innovative technology and our many years of experience.

The NIBE S1156 has a seasonal performance factor of up to 6.22* using the SCOP method, making it a highly efficient climate system with low operating costs. After connecting a separate water heater of any size, it provides hot water with high performance. The heat pump is designed for houses up to approx. 400 m2 and is available in three output sizes: 1.5–8 kW, 3–13 kW and 4–18 kW.  The NIBE S1156 is designed for low noise levels and is suitable for both new builds and when replacing an existing heat source.

With integrated Wifi and the possibility of connecting to wireless accessories, the NIBE S-Series will become a natural part of your connected home. The smart technology adjusts the indoor climate automatically, while you exercise complete control from your smartphone or tablet. A high level of comfort and low energy consumption – and you're doing nature a favour at the same time.

HIGH CUSTOMIZATION

Our most energy-efficient ground source heat pump with a seasonal performance factor of up to 6.22.

TOP PERFORMING

A new, more climate friendly refrigerant, high hot water capacity and low noise level.

HIGH COMFORT

User-friendly touchscreen, wireless accessories, and integrated wireless connectivity with energy-saving smart technology for high comfort.

  • Technical Data
  • Documents
NIBE S1156-8
NIBE S1156-13
NIBE S1156-18

NIBE ACS 45

Active/Passive cooling (4-pipe). ACS 45 combined with a heat pump is a climate control system for heating and cooling houses and apartment buildings.

NIBE AXC 40

Accessory card. AXC 40 is used to enable connection and control of Mixing valve controlled additional heat Pump for hot water circulation Groundwater pump

NIBE CDS 10

This wireless sensor allows you to read the CO2, temperature and humidity level in a room or climate zone using the myUplink app. For NIBE S-series heating installations with ventilation the indoor comfort level can automatically be adjusted to give you a comfortable indoor climate. For example, you can increase ventilation and lower the CO2 level when there are a lot of people present or lower the ventilation to further reduce your energy costs. Because it is battery powered, it is easy to install, but it can also operate with an external power source using a micro USB.Mount the sensor in your room and connect it to your NIBE S-Series heat and ventilation installation.

NIBE ECS 41

Extra heating circuit (maximum 80-250 m2 floor heating). ECS 41 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE EF 45

NIBE ECS 40

Extra heating circuit (maximum 80 m2 floor heating). ECS 40 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE KB 25

Combination valve for filling up the brine. Including insulation. For heat pumps max. 13 kW.

NIBE PCM S40

The NIBE PCM ground source accessory makes it possible to obtain passive cooling from bedrock or groundwater sources. Combine with your S Series heat pump for a flexible system. Even while your system is continually heating hot water it will cool your home. NIBE PCM is controlled via the heat pump’s touch control, where both settings and monitoring are handled with an easy swipe. The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE FLM S45

The NIBE FLM S45 is an exhaust air module with built-in fan, specially designed for combining recycling of mechanical exhaust air with a NIBE ground source heat pump, providing an integrated solution for ventilation, hot water and heating. The NIBE FLM S45 has a high fan capacity and low noise level. Energy is recovered from the ventilation air; even when the heat pump is not in operation, energy is stored in the ground or soil collector and exhaust air energy is thus put to maximum use..

NIBE BAU 40

NIBE PCS 44

Passive cooling. PCS 44 is used when heat pump is installed in an installation with passive cooling.

NIBE POOL 40

An accessory that allows pool heating using heat pump. Max 18 kW. The heat pump controls the reversing valve, pool circulation pumpand any heating circuit circulation pumps via POOL 40.

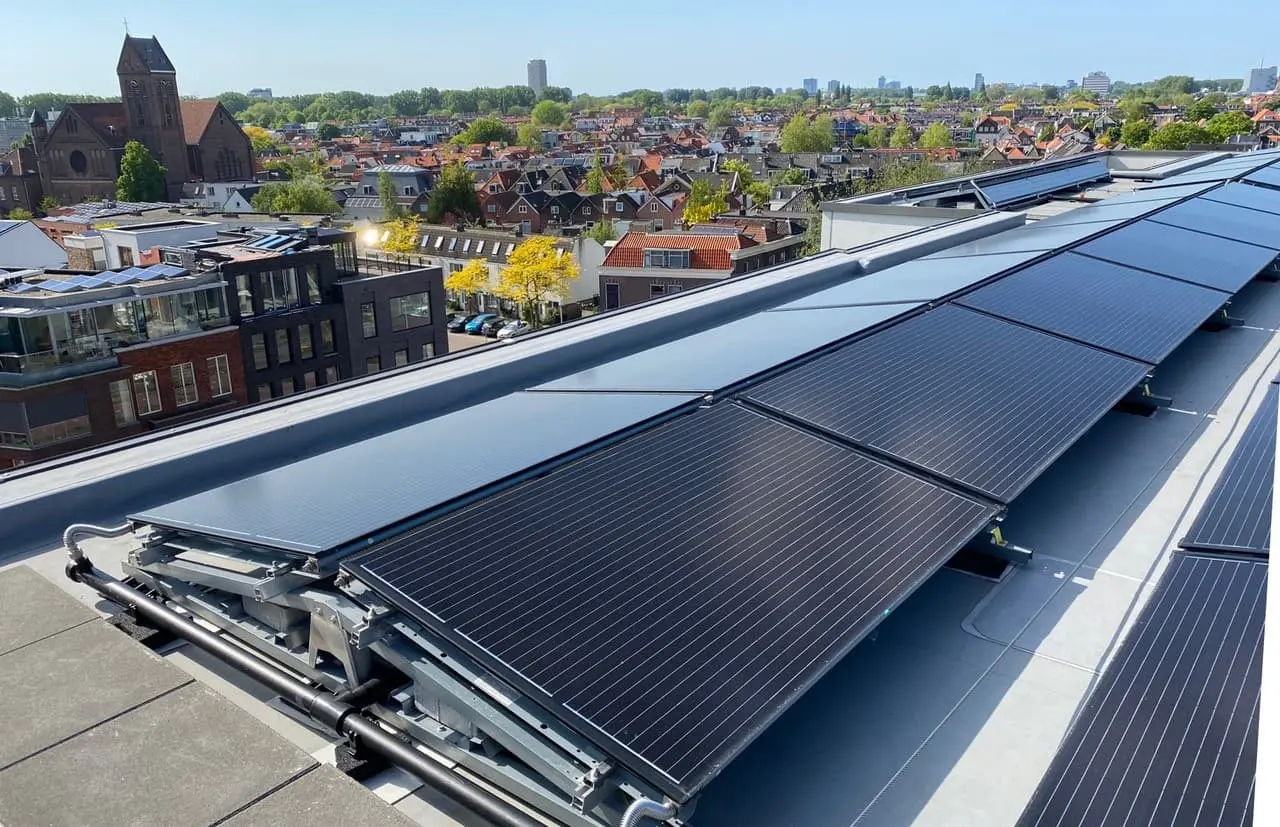

NIBE PV

NIBE PV is an integrated solution which is based on a fully modular system with the following basic sizes: 4 / 8 / 12 / 16 / 20 kW, mounting parts and a suitable inverter with communication module, all of which are ready for installation. NIBE PV comprises of monocrystalline silicon cell panels which use PERC technology, with an output of 400 Wp. The solar panels are elegant, all-black panels. NIBE PV harnesses sunlight all year round and converts it into electricity. NIBE PV can be connected to your NIBE heat pump* for maximum energy efficiency. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time. * applies to systems which can be connected to NIBE myUplink.

NIBE EME 20

Communication and control. EME 20 is used to enable communication and control between the inverter for solarcells and heat pump/indoor module/control module.

NIBE HTS 40

HTS 40 is an accessory that records humidity and temperature.

NIBE RMU S40

The NIBE RMU S40 is a room unit with 2,8” touch display with built in temperature and humidity sensors. It is used to control and monitor your NIBE S series heat pump/indoor module from another room in the house than the room where the heat pump is placed. The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE THS 10

This wireless sensor allows you to read the temperature and humidity in a room or climate zone using the myUplink app. On the heat pump you can see the current room temperature or change it in °C.THS 10 replaces the fixed indoor sensor. Because it is battery powered, it is easy to install.Mount the sensor in your room and connect it to your NIBE S-Series heating installation.

NIBE Top cabinet 345 mm

NIBE Top Cabinet 385-635 mm

NIBE ROT 10

The wireless room thermostat allows you to read and control the temperature of a room or a climate zone from the display of the room thermostat or via the myUplink app in your smartphone. For instance by increasing the hot water production when you have many guests or lower the ventilation for better savings when you are not home.Because it is powered by a rechargeable battery, it is easy to install.Mount the thermostat in your room and connect it to your NIBE S-Series heat pump.

NIBE Top cabinet 245 mm

Height (mm)

1500

Width (mm)

600

Depth (mm)

620

Net weight (kg)

165

Product efficiency class room heating, 35 °C

A+++

Product efficiency class room heating, 55 °C

A+++

System efficiency class room heating, 35 °C

A+++

System efficiency class room heating, 55 °C

A+++

Efficiency class water heating

A+

Refrigerant volume, CO² equivalent (ton)

0,54

Declared tap profile

XL

User manual (UHB)
Installer manual (IHB)
Installer manual (IHB) ( sv )
Energy Labels (ELI) S1156-13
Energy Labels (ELI)
Energy Labels (ELI) S1156-8
Consumer information leaflet (CIL)
