NIBE ground source heat pump

NIBE F1345

Ground Source Heat Pump
  • Product information
  • Advantages

NIBE F1345 is a powerful, flexible ground source heat pump which is available in the output sizes 24, 30, 40 and 60 kW. Up to nine NIBE F1345s can be combined in a single system to cover output requirements of up to 540 kW. NIBE F1345 has a high seasonal performance factor, and with less than 5 tonnes CO2 equivalent refrigerant volume per compressor module. Two large compressors make NIBE F1345 perfect for properties with larger heating requirements. The compressors are switched on and off automatically for better output regulation, a longer operating range, less wear and tear and improved reliability.

Flexible and powerful

Powerful, flexible system that covers output requirements up to 540 kW.

Reliable

Reliable system with efficient output regulation which does not require annual inspection.

Remote control

Smart technology with user-friendly control for optimum remote control.

  • Technical Data
  • Documents
NIBE F1345-24
NIBE F1345-30
NIBE F1345-40
NIBE F1345-60

NIBE AXC 50

An accessory card is required if step controlled additional heat (e.g. external electric boiler) or if shunt controlled additional heat (e.g. wood/oil/gas/pellet boiler), passive/active cooling 2 pipe, passive cooling 2 respectively 4 pipe or if hot water comfort is to be connected to F1345.

NIBE ACS 45

Active/Passive cooling (4-pipe). ACS 45 combined with a heat pump is a climate control system for heating and cooling houses and apartment buildings.

NIBE ELK 42

Electric boilers for additional heating for ground source heat pumps.

NIBE ECS 41

Extra heating circuit (maximum 80-250 m2 floor heating). ECS 41 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE ELK 15

ELK 15 is an immersion heater primarily intended for installation together with heat pump for heating houses or smaller apartment blocks.

NIBE ELK 26

Electric boilers for additional heating for ground source heat pumps.

NIBE KB 32

Combination valve for filling up the brine. Including insulation. For heat pumps max. 30 kW.

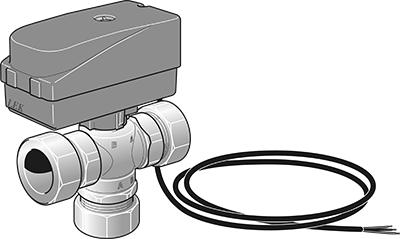

NIBE VST 20

This accessory allows hot water priority for larger heat pumps (maximum load power 40 kW), such as NIBE F1345

NIBE ECS 40

Extra heating circuit (maximum 80 m2 floor heating). ECS 40 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE MODBUS 40

A NIBE heat pump can be controlled and monitored by external Modbus equipment. NIBE ModbusManager is a program package for users of NIBE MODBUS 40.

NIBE EME 20

Communication and control. EME 20 is used to enable communication and control between the inverter for solarcells and heat pump/indoor module/control module.

NIBE SOLAR 40

NIBE SOLAR 40 enables solar heating with your heat pump. With additional solar panels and VPAS you get a complete system.

NIBE PVT

The NIBE PV-T collector is an alternative, innovative, heat source for use with NIBE ground source heat pumps, removing the requirement of a ground or bore hole collector array . The PV-T collectors produce electrical energy that can be used to operate a ground source heat pump.

NIBE SOLAR 42

NIBE SOLAR 42 enables solar heating with your heat pump. With additional solar panels and VPBS you get a complete system.

NIBE RTS 40

Room sensor used to obtain a more even indoor temperature. RTS 40 has up to three functions:Show current room temperature in the heat pump's display. Option of changing the room temperature in °C. Makes it possible to change/stabilise the room temperature.

NIBE PCS 44

Passive cooling. PCS 44 is used when heat pump is installed in an installation with passive cooling.

NIBE VPB 500-1000

NIBE BAU 40

NIBE HR 10

Auxiliary relay HR 10 is a connection box housing a contactor and a rotary selector switch. It is used to control external 1 to 3-phase loads such as oil burners, immersion heaters and pumps.

NIBE HTS 40

HTS 40 is an accessory that records humidity and temperature.

NIBE POOL 40

An accessory that allows pool heating using heat pump. Max 18 kW. The heat pump controls the reversing valve, pool circulation pumpand any heating circuit circulation pumps via POOL 40.

NIBE RMU 40

With RMU 40 you can control and monitor your NIBE heat pump from another room in the house.

Height (mm)

1800

Width (mm)

600

Depth (mm)

620

Net weight (kg)

320

Product efficiency class room heating, 35 °C

A+++

Product efficiency class room heating, 55 °C

A++

System efficiency class room heating, 35 °C

A+++

System efficiency class room heating, 55 °C

A++

Refrigerant volume, CO² equivalent (ton)

2x3,55

Refrigerant volume, R407C (kg)

2x2

Energy Labels (ELI) 24kW
Energy Labels (ELI) 30kW
Energy Labels (ELI) 40kW
Energy Labels (ELI) 60kW
