NIBE solar products

NIBE PV-T Panels

Collectors for multi-source heat pumps
Award Winning

Harvesting energy, generating power

PV-T

NIBE PV-T

Photovoltaic-Thermal panels are an excellent collector source for a NIBE heat pump. The installation of a PV-T array can be utilised as a direct alternative or supplement to a traditional borehole or surface collector.

This new, innovative, approach transforms a NIBE "Ground" source heat pump product into a "Multi-source" heat pump product.

Efficient

Even on cloudy days and at temperatures below freezing, the heat exchanger provides sufficient heat supply for the heat pump.

Innovative

The ideal solution to either replace or supplement a borehole or
surface soil collector system.

Improved efficiency

Improved PV generation efficiency.

Dual purpose design

Unique, elegant panels to extract energy and generate power.

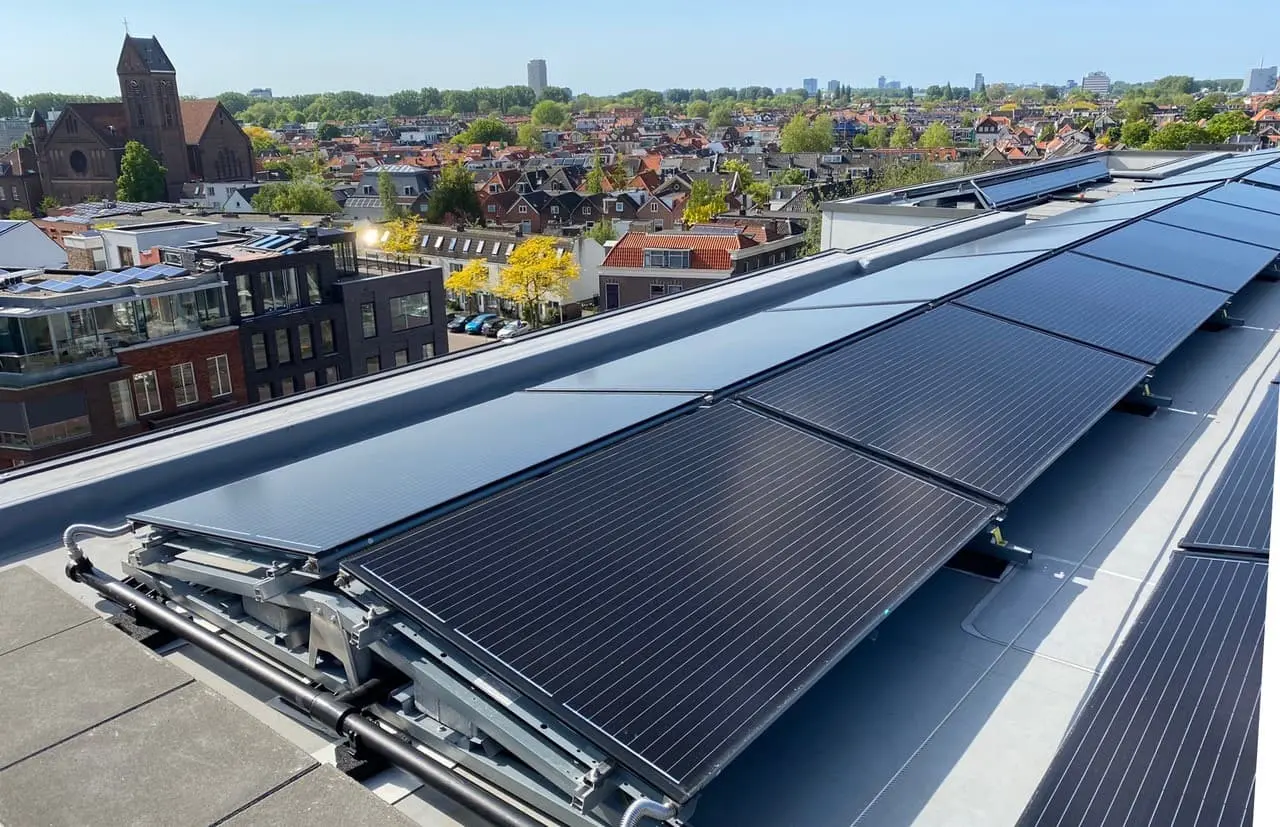

See our PV-T in action on one of the worlds largest PV-T projects

PV-T panels are equipped with PV cells at the front that convert sunlight into electricity. The rear consists of a thermal heat exchanger that extracts energy from the ambient air that is heated under the panels by daylight and sunlight. The operation of the heat exchanger is therefore comparable to that of an air/water heat pump, without the requirement of a mechanical fan. A PVT system therefore works 100% silently!

Even on cloudy days and at night – without direct heating of sunlight and even at temperatures below freezing, the heat exchanger provides sufficient heat supply for the heat pump. In warmer months the heat extracted by the collector helps cool the PV aperture surface, improving generation efficiency.


 Read the full case study here.


Award Winning

  • Product information
  • Advantages

The NIBE PV-T collector is an alternative, innovative, heat source for use with NIBE ground source heat pumps, removing the requirement of a ground or bore hole collector array . The PV-T collectors produce electrical energy that can be used to operate a ground source heat pump.

Totally silent air collector for NIBE multi-source heat pumps

Unique, elegant, all-black panels with double production of energy, thermal, and electricity

The ideal solution as an alternative or supplement to a borehole or surface collector system

Circulating brine helps cool the PVT panel, increasing PV generation efficiency

Improved PV generation for efficiency

  • Technical Data
NIBE PVT

Height (mm)

1055

Width (mm)

1791

Depth (mm)

65

Net weight (kg)

27

GSHP

PV-T and Ground Source Heat Pumps

This new, innovative, approach transforms a NIBE "Ground" source heat pump product into a "Multi-source" heat pump product.
