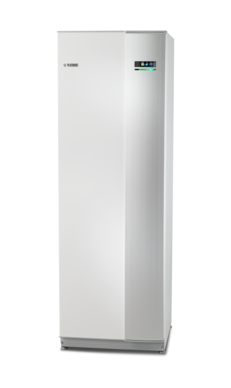

NIBE ground source heat pump

NIBE F1245

Ground source heat pump
  • Product information
  • Advantages

NIBE F1245 is an all-in-one heat pump with an integrated water heater with a capacity of 180 litres. NIBE F1245 has high seasonal efficiency and a high temperature range. NIBE F1245 is available in the following output sizes: 6, 8, 10 and 12 kW. The heat pump is suitable for detached and terraced houses. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

Energy-efficient and all-in-one

Efficient, all-in-one heat pump with integrated hot water tank.

High performance

High seasonal performance factor – high temperature range.

Part of your smart home

Energy-saving smart technology with user-friendly control.

  • Functions
  • Accessories
  • Technical data
  • Document
NIBE F1245-6
NIBE F1245-8
NIBE F1245-10
NIBE F1245-12

NIBE Smart Price Adaption

With Smart Price Adaption, the heat pump receives information about the electricity prices for the next 24 hours and then adapts the operation to these. The function is based on information about the hourly prices of the coming day from the electricity exchange NordPool Spot. The prices in combination with expected heating and hot water needs then automatically control the heat pump. This is in order to reduce energy costs and which in the long run contributes to a smaller environmental impact.

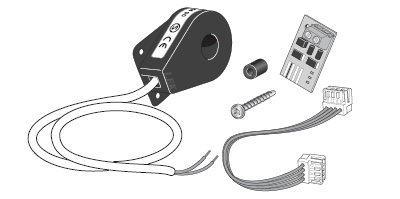

NIBE EME 10

To optimise the use of solar generated electricity.

NIBE PCM 40

Passive cooling module. Elegant and timeless design High flexibility for best indoor climate Passive cooling and hot water production simultaneously Installer-friendly Settings shown on the heat pump’s display Compatible with heat pumps in the NIBE F1145/F1245 and F1155/F1255 series. FEATURES OF NIBE PCM 40/PCM 42The NIBE PCM accessory gives your installation a high degree of flexibility. It is compatible with the NIBE F1145/F1245 and F1155/F1255 series, which was developed in such a way as to enable all the heat pump’s potential applications - both free cooling and hot water production. Combine your heat pump with NIBE PCM for passive / free cooling. It works, even while your system is continually heating hot water.NIBE PCM is easily controlled via the heat pump’s control panel, where both settings and monitoring are easily handled at the push of a button. This accessory’s timeless design means that it blends in well with your other heat pump equipment.

NIBE ERS S10-400

The NIBE ERS S10-400 is a heat recovery ventilation unit with high temperature efficiency up to 92% and low energy consumption. The heat recovery ventilation unit is used in houses with areas up to approx. 300 m2.The NIBE ERS S10-400 is designed for installation with a NIBE ground source heat pump or a NIBE air/water heat pump for a complete heating and ventilation system. The heat recovery ventilation unit is easily controlled by the heat pump. The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE PCS 44

Passive cooling. PCS 44 is used when heat pump is installed in an installation with passive cooling.

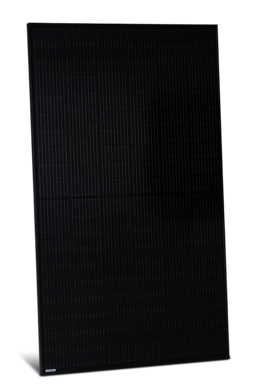

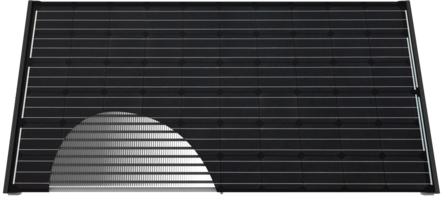

NIBE PV

NIBE PV is an integrated solution which is based on a fully modular system with several basic sizes: 4 / 8 / 12 / 16 / 20 kW. Each basic package has nominal power of 4 kW and consists of 10 panels, mounting parts and an inverter with communication module, all of which are ready for installation. The solar package can easily be expanded with additional solar panels for optimum use of roof space. NIBE PV comprises of monocrystalline silicon cell panels which use PERC technology, with an output of 400 Wp. The solar panels are elegant, all-black panels. NIBE PV harnesses sunlight all year round and converts it into electricity. NIBE PV can be connected to your NIBE heat pump* for maximum energy efficiency. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time. * applies to systems which can be connected to NIBE Uplink and myUplink.

NIBE ACS 45

Active/Passive cooling (4-pipe). ACS 45 combined with a heat pump is a climate control system for heating and cooling houses and apartment buildings.

NIBE PLEX 322-60

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

NIBE PLEX 322-40

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

NIBE PLEX 322-30

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

NIBE PLEX 310-80

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

NIBE PLEX 310-60

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

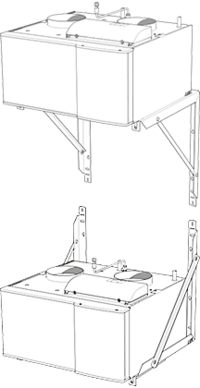

NIBE FLM - Console package

FLM - Console package

NIBE POOL 40

An accessory that allows pool heating using heat pump. Max 17 kW. The heat pump controls the reversing valve, pool circulation pumpand any heating circuit circulation pumps via POOL 40.

NIBE KB 32

Combination valve for filling up the brine. Including insulation.

NIBE PLEX 310-20

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

NIBE PLEX 310-40

Tap water exchanger.PLEX is a plate heat exchanger with plates manufactured from acid-resistant steel (SS 23 43). PLEX is available in seven different models. Insulation, consisting of two 30 mm-thick, moulded halves of polyurethane foam, corresponding to approx. 70 mm mineral wool, is included. The surface is covered by ABS plastic.

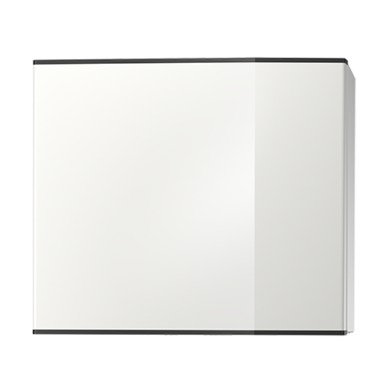

NIBE Top cabinet 345 mm

Top cabinet

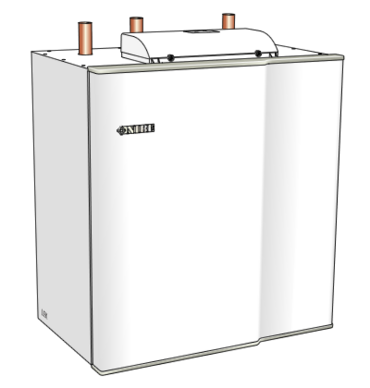

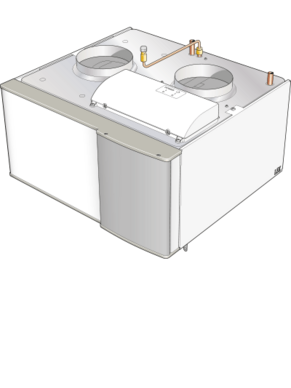

NIBE FLM

The NIBE FLM is an exhaust air module with built-in fan, specially designed for combining recycling of mechanical exhaust air with a NIBE ground source heat pump, providing an integrated solution for ventilation, hot water and heating. The NIBE FLM has a high fan capacity and low noise level. Energy is recovered from the ventilation air; even when the heat pump is not in operation, energy is stored in the ground or soil collector and exhaust air energy is thus put to maximum use. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected lifestyle. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

NIBE Top Cabinet 395-635 mm

Top cabinet

NIBE PVT

NIBE PVT 40 makes it possible for your heat pump to use NIBE PVT panels as a heat source. The heat pump regulates the temperature of incoming brine in the summer, and closes the shunt valve in the winter when the temperature reaches the set value.

NIBE MODBUS 40

A NIBE heat pump can be controlled and monitored by external Modbus equipped equipment.

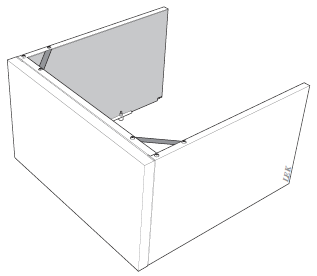

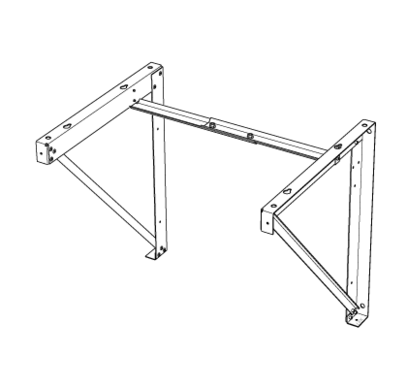

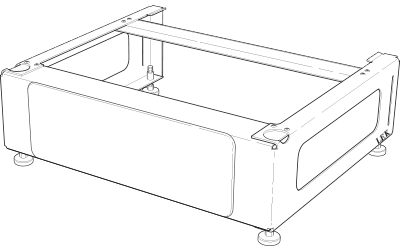

NIBE EF 45

Extension frame.

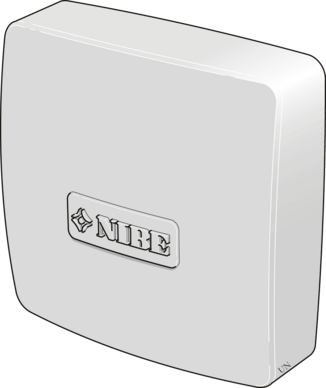

NIBE RTS 40

Room sensor used to obtain a more even indoor temperature. RTS 40 has up to three functions:Show current room temperature in the heat pump's display. Option of changing the room temperature in °C. Makes it possible to change/stabilise the room temperature.

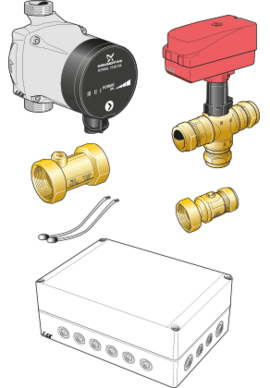

NIBE ECS 41

Extra heating circuit (recommended 80-250 m2 floor heating). ECS 41 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE Top cabinet 245 mm

Top cabinet

NIBE RMU 40

With RMU 40 you can control and monitor your Nibe heat pump from another room in the house.

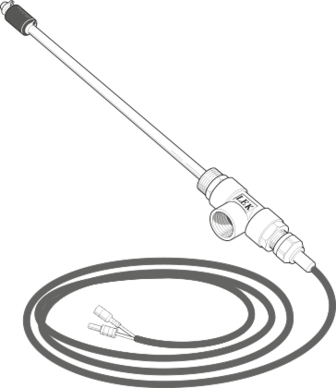

NIBE NV 10

Level monitor of brine collector circuit.

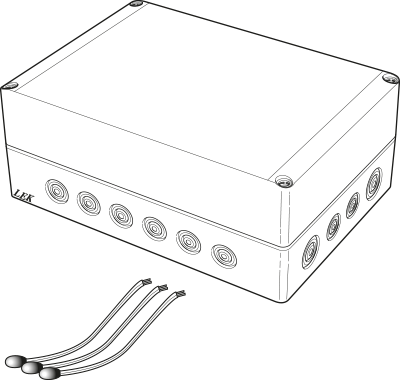

NIBE ECS 40

ECS 40 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE OPT 10

NIBE OPT 10 is used to enable connection and control of gas boiler NIBE GBM 10-15

NIBE AXC 40

Accessory card. AXC 40 is used to enable connection and control of Mixing valve controlled additional heat, Pump for hot water circulation, Groundwater pump

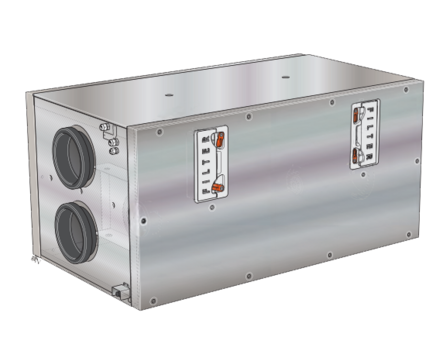

NIBE ERS 20-250

The NIBE ERS 20-250 is a heat recovery ventilation unit with high temperature efficiency up to 92% and low energy consumption. The heat recovery ventilation unit is used in houses with areas up to 200 m2. The NIBE ERS 20-250 is designed for installation with a NIBE ground source heat pump or a NIBE air/water heat pump for an integrated heating, hot water and ventilation system. The heat recovery ventilation unit is easily controlled by the heat pump. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected lifestyle. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

NIBE EME 20

Communication and control. EME 20 is used to enable communication and control between the inverter for solarcells and heat pump/indoor module/control module.

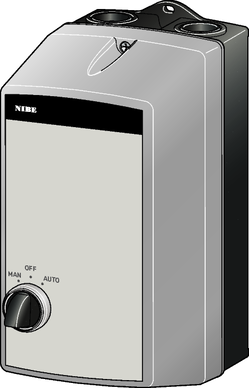

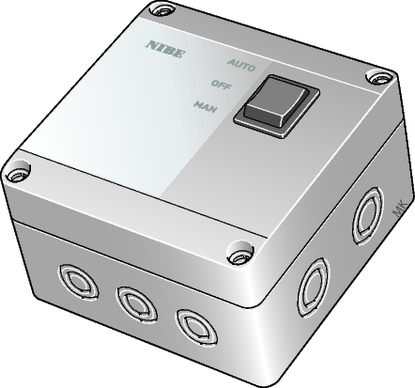

NIBE HR 10

Auxiliary relay HR 10 is a connection box housing a contactor and a rotary selector switch. It is used to control external 1 to 3-phase loads such as oil burners, immersion heaters and pumps.

NIBE VST 20

Makes hot water priority possible at large heat pump outputs. (charging power between 15 and 40 kW), together with an SMO 10 and F1330-40. This also requires a hot water accumulator, for example, NIBE VPA.

NIBE VST 11

Provides the heat pump together with SMO 10 to prioritise hot water charging on systems with floating condensing. This also requires a hot water accumulator, for ex. NIBE VPA. Hot water control for max.electric charge output: 17 kW

NIBE SOLAR 40

NIBE SOLAR 40 enables solar heating with your heat pump. With additional solar panels and VPAS you get a complete system.

NIBE SOLAR 42

NIBE SOLAR 42 enables solar heating with your heat pump. With additional solar panels and VPBS you get a complete system.

NIBE PCM S40

The NIBE PCM ground source accessory makes it possible to obtain passive cooling from rock, groundwater or surface soil collectors. Combine with your S Series heat pump for a flexible system. Even while your system is continually heating hot water it will cool your home. NIBE PCM is controlled via the heat pump’s touch control, where both settings and monitoring are handled with an easy swipe. The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE PCM S42

The NIBE PCM ground source accessory makes it possible to obtain passive cooling from rock, groundwater or surface soil collectors. Combine with your S Series heat pump for a flexible system. Even while your system is continually heating hot water it will cool your home. NIBE PCM is controlled via the heat pump’s touch control, where both settings and monitoring are handled with an easy swipe. The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE HPAC S40

Combine with your NIBE S Series heat pump for passive or active cooling. It will keep you cool even while your system is continually heating hot water.

Height (mm)

1800

Depth (mm)

620

Net weight (kg)

240

Product efficiency class room heating, 35 °C

A++

Product efficiency class room heating, 55 °C

A++

System efficiency class room heating, 55 °C

A++

System efficiency class room heating, 35 °C

A+++

Efficiency class water heating

A

Refrigerant amount, CO2 equivalent (ton)

2,66

Refrigerant amount, R407C (kg)

1,5

Declared tap profile

XL

Amount of hot water 40 °C (l)

240

User manual , ( bs )
Installer manual
Product leaflet
Product catalogue Ground source heat pumps
Product catalogue Product Range
Energy Labels F1245-10 / F1245-10 PC
Energy Labels F1245-12
Energy Labels F1245-6 / F1245-6 PC
Energy Labels F1245-8 / F1245-8 PC
Wiring diagram F1145/F1245
