NIBE SPLIT SVM S332

Air/Water heat pump
  • Product information
  • Advantages

The NIBE SVM S332 is an intelligent indoor module that provides efficient heating, powerful cooling, and hot water with high performance for your home. Together with the NIBE AMS 20 outdoor module, it forms a complete climate system for high comfort with a simple installation.

The system operates at an outdoor temperature as low as -20°C and delivers a supply temperature of up to 58°C. It provides optimum savings as it automatically adapts to the house’s output requirements all year round. The effective cooling function allows the heat pump to deliver a comfortable indoor climate even at high outdoor temperatures.

With integrated Wi-Fi and the possibility of connecting to wireless accessories, the NIBE S-Series will become a natural part of your connected home. The smart technology adjusts the indoor climate automatically, while you have complete control from your smartphone or tablet. A high level of comfort and low energy consumption – and you're doing nature a favour at the same time.

COMPLETE SYSTEM

Combine NIBE SVM S332 with NIBE AMS 20 for a complete climate system.

POWERFUL COOLING EFFECT

High capacity, even down to -20°C, and effective cooling down to +7°C.

USER-FRIENDLY

User-friendly touchscreen, wireless accessories and integrated wireless connectivity with energy-saving smart technology for a high level of comfort.

  • Accessories
  • Technical data
  • Document
NIBE SVM S332-6
NIBE SVM S332-10
NIBE AMS 20-6
NIBE AMS 20-10

NIBE EMK 300

Energy measurement kit for indoor unit.

NIBE SRV 10

With a wireless radiator thermostat, it is easy for you to adjust the heat and energy consumption according to individual needs, room by room.

NIBE ELK 213

The NIBE ELK 213 is an electric heater designed for heating detached houses or smaller rental homes, as well as indirect heating of hot water. The NIBE ELK 213 can be installed together with a boiler, accumulator tank or heat pump. When installed together with a heat pump, for example, the electric heater automatically switches on to provide supplementary heating when the heating demand is greater than the heat pump’s capacity.

NIBE ELK 15

ELK 15 is an immersion heater primarily intended for installation together with heat pump for heating. NIBE ELK 15 contains overheating protection and contactors to externally regulate the two power groups, 5.0 and 10.0 kW.

NIBE HR 10

Auxiliary relay HR 10 is a connection box housing a contactor and a rotary selector switch. It is used to control external 1 to 3-phase loads such as oil burners, immersion heaters and pumps.

NIBE TOC 30 Top cabinet 345 mm

Top cabinet

NIBE TOC 30 Top cabinet 245 mm

Top cabinet

NIBE TOC 30 Top Cabinet 385-635 mm

Top cabinet

NIBE EF 45

Extension frame.

NIBE ELK 26

ELK 15 is an immersion heater primarily intended for installation together with heat pump for heating houses or

NIBE CDS 10

This wireless sensor allows you to read the CO2, temperature and humidity level in a room or climate zone using the myUplink app. For NIBE S-series heating installations with ventilation the indoor comfort level can automatically be adjusted to give you a comfortable indoor climate. For example, you can increase ventilation and lower the CO2 level when there are a lot of people present or lower the ventilation to further reduce your energy costs. Because it is battery powered, it is easy to install, but it can also operate with an external power source using a micro USB.

Mount the sensor in your room and connect it to your NIBE S-Series heat and ventilation installation.

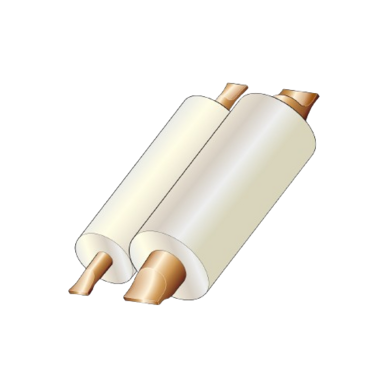

NIBE RPK 10-120

Refrigerant pipes 1/4'' / 1/2'', 12 meters, insulated, for SVM S332-6

NIBE EME 20

Communication and control. EME 20 is used to enable communication and control between the inverter for solarcells and heat pump/indoor module/control module.

NIBE AXC 40

Accessory card. AXC 40 is used to enable connection and control of Mixing valve controlled additional heat, Pump for hot water circulation, Groundwater pump

NIBE RMU S40

The NIBE RMU S40 is a room unit with 2,8” touch display with built in temperature and humidity sensors. It is used to control and monitor your NIBE S series heat pump/indoor module from another room in the house than the room where the heat pump is placed.

The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE ROT 10

The wireless room thermostat allows you to read and control the temperature of a room or a climate zone from the display of the room thermostat or via the myUplink app in your smartphone. For instance by increasing the hot water production when you have many guests or lower the ventilation for better savings when you are not home. Because it is powered by a rechargeable battery, it is easy to install.

Mount the thermostat in your room and connect it to your NIBE S-Series heat pump.

NIBE RPP 10

Enhances the signal, improving communication between your smart home products when they are placed at a distance from each other. For NIBE S- Series heating installations, the repeater functions as a switch, giving you the opportunity to control it remotely, schedule On and Off times and measure energy consumption.

Plug in the repeater and connect it to your NIBE S-Series heating installation.

NIBE THS 10

This wireless sensor allows you to read the temperature and humidity in a room or climate zone using the myUplink app. On the heat pump you can see the current room temperature or change it in °C. THS 10 replaces the fixed indoor sensor. Because it is battery powered, it is easy to install.

Mount the sensor in your room and connect it to your NIBE S-Series heating installation.

NIBE ECS 40

ECS 40 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE ECS 41

Extra heating circuit (recommended 80-250 m2 floor heating). ECS 41 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

Height (mm)

1800

Depth (mm)

620

Net weight (kg)

128

Volume water heater (l)

140

Amount of hot water 40 °C (l)

185

User manual (UHB)
User manual (UHB) ( it )
Installer manual (IHB)
Installer manual (IHB) ( it )
Product leaflet (PBD)
Energy Labels (ELI)
Energy Labels (ELI)
Consumer information leaflet (CIL)
