- Product information
- Advantages

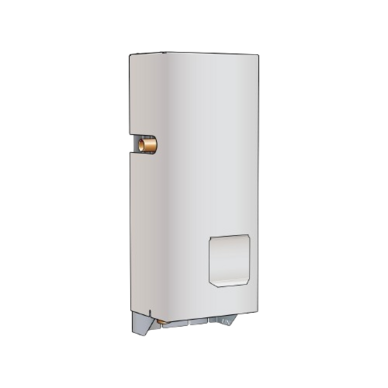

The NIBE SHB 20 is a compact hydrobox suitable for air to water split systems. The outdoor module NIBE AMS is connected with refrigerant pipes to the NIBE SHB 20. The NIBE SHB 20 provides optimum savings since the heat pump automatically adjusts to the property’s output requirements all year round.
The system is a fully equipped indoor unit for heating/cooling and prepared for hot water production - in combination with NIBE SPLIT AMS outdoor unit. The system works down to an outdoor temperature of –20 °C and supplies up to 58 °C in supply line temperature. The effective cooling function allows the heat pump to deliver a comfortable indoor climate even at high outdoor temperatures.
Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.
Complete
Combine NIBE SHB 20 with a NIBE AMS heat pump for an energy-efficient climate system.
Efficient
High capacity even down to –20 °C and well-developed cooling function.
Flexible
Simple and easy-to-place installation. You choose a separate hot water tank according to your needs.
- Accessories
- Technical data
- Document
NIBE KVR 10-10, 1 M
Condensation water pipes for F2040. Different lengths, 1, 3 or 6 m.
NIBE AGS 10
Automatic gas separator for NIBE SPLIT HBS 20-10 / NIBE SPLIT SVM S332-10
NIBE KVR 10-30, 3 M
The NIBE KVR range provides installers with a simple, reliable and freeze protected way to manage condensate drainage from NIBE air source heat pumps. KVR 10 is for the F2050-6 and F2050-10 and is available in multiple lengths, indicated by the suffix; for example, KVR 10-10 = 1 m, KVR 10-30 = 3 m, and KVR 10-60 = 6 m. All variants combine insulated pipework with a thermostat-controlled heating cable that automatically prevents ice formation, ensuring safe drainage even in sub-zero conditions and protecting the heat pump from backflow, frost damage or condensate pooling.
NIBE KVR 10-60, 6 M
The NIBE KVR range provides installers with a simple, reliable and freeze protected way to manage condensate drainage from NIBE air source heat pumps. KVR 10 is for the F2050-6 and F2050-10 and is available in multiple lengths, indicated by the suffix; for example, KVR 10-10 = 1 m, KVR 10-30 = 3 m, and KVR 10-60 = 6 m. All variants combine insulated pipework with a thermostat-controlled heating cable that automatically prevents ice formation, ensuring safe drainage even in sub-zero conditions and protecting the heat pump from backflow, frost damage or condensate pooling.
NIBE MODBUS 40
A NIBE heat pump can be controlled and monitored by external Modbus equipped equipment.
NIBE RTS 40
Room sensor used to obtain a more even indoor temperature. RTS 40 has up to three functions: Show current room temperature in the heat pump's display. Option of changing the room temperature in °C. Makes it possible to change/stabilise the room temperature.
NIBE POOL 40
The NIBE POOL 40 accessory provides a complete, ready-engineered solution for integrating pool heating into a NIBE ground source heat pump system. Using its dedicated AXC module, motorised 3-way valve and paired pool sensors, the unit automatically diverts heating medium flow through a pool heat exchanger whenever pool heating is enabled. The accessory controls both the pool circulation pump and any required external heating medium pump, ensuring correct flow and accurate temperature readings throughout the charge cycle. Built-in sensor validation ensures pool heating only activates under safe conditions, providing dependable operation and seamless interaction with the wider heat pump system.
NIBE RMU 40
With RMU 40 you can control and monitor your Nibe heat pump from another room in the house.
NIBE AXC 40
Accessory card. AXC 40 is used to enable connection and control of Mixing valve controlled additional heat, Pump for hot water circulation, Groundwater pump
NIBE HR 10
Auxiliary relay HR 10 is a connection box housing a contactor and a rotary selector switch. It is used to control external 1 to 3-phase loads such as oil burners, immersion heaters and pumps.
NIBE HTS 40
HTS 40 is an accessory that records humidity and temperature.
NIBE ECS 40
ECS 40 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.
NIBE ECS 41
The NIBE ECS 41 kit allows installers to add one or more additional heating circuits to a NIBE heat pump installation where different supply temperatures are required, such as radiator and underfloor heating combinations. Each kit includes a dedicated AXC accessory module, shunt valve, shunt motor, circulation pump and temperature sensor, enabling the new zone to run as a fully controlled climate system with independent flow temperature, heating curve and pump operation. The ECS 41 is sized for larger UFH areas above 80 m².
Height (mm)
850
Width (mm)
515
Depth (mm)
345
Product efficiency class room heating, 35 °C
A++
Product efficiency class room heating, 55 °C
A++
System efficiency class room heating, 55 °C
A++
System efficiency class room heating, 35 °C
A+++
