NIBE climate solutions for large energy needs

NIBE F2120

Products for larger properties
  • Product information
  • Advantages

NIBE F2120 is an inverter-controlled air/water heat pump which represent a real breakthrough when it comes to efficiency. With a seasonal performance factor in excess of 5.0*, the heat pump provides more than five times as much heat per year as an electric heater with the same energy consumption. NIBE F2120 provides optimum savings since the heat pump automatically adapts to your home’s output requirements all year round. NIBE F2120 has a class leading working range and deliver a supply temperature of up to 65°C. Even at outdoor temperatures of as low as -25°C, it still provides a supply temperature of up to 63°C, while keeping the noise level to a minimum. NIBE F2120 has three-phase connection, which simplifies electrical installation. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

  • Functions
  • Accessories
  • Technical data
  • Document
NIBE F2120-8
NIBE F2120-8 (1-fas)
NIBE F2120-16
NIBE F2120-20

NIBE Smart Price Adaption

With Smart Price Adaption, the heat pump receives information about the electricity prices for the next 24 hours and then adapts the operation to these. The function is based on information about the hourly prices of the coming day from the electricity exchange NordPool Spot. The prices in combination with expected heating and hot water needs then automatically control the heat pump. This is in order to reduce energy costs and which in the long run contributes to a smaller environmental impact.

Inverter controlled compressor

The heat pump has an inverter-controlled compressor that helps you as it automatically adapts to your house and supplies your plant with renewable energy.

NIBE F135

The NIBE F135 is an exhaust air module designed for docking to a NIBE air/water heat pump and a NIBE indoor module (VVM) or control module (SMO). The NIBE F135 uses the heat that is found in the house’s ventilation air to heat the house and hot water, at the same time as ventilating the house. In installations with cooling, hot water and cooling can be produced at the same time. The exhaust air module provides an improved seasonal performance factor and has a low noise level and high ventilation capacity. The NIBE F135 is easy to control through the heat pump’s indoor module. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected lifestyle. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

NIBE KVR 10-F2120 3 M

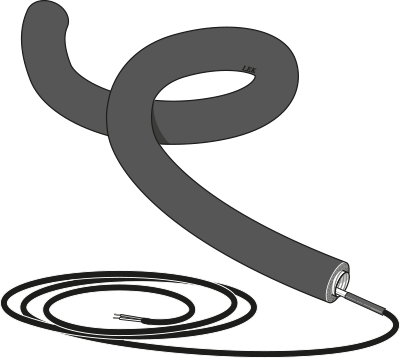

Condensation water pipes for F2120. Different lengths, 1, 3 or 6 m.

NIBE KVR 10-F2120 6 M

Condensation water pipes for F2120. Different lengths, 1, 3 or 6 m.

NIBE SMO 20

The NIBE SMO 20 gives optimised control of the climate system and is designed to be combined with NIBE air/water heat pumps to provide an integrated climate system for your home. The control module, NIBE SMO 20, offers a flexible system solution. The NIBE SMO 20 is connected to additional components for efficient heating, cooling and hot water for a customised installation. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

NIBE SMO S40

The NIBE SMO S40 gives optimised control of the climate system and is designed to be combined with NIBE air/water heat pumps to provide an integrated climate system for homes and properties. The NIBE SMO S40 offers maximum flexibility when it comes to system solutions. The control module can be connected to components such as a water heater, additional heat sources and other accessories specific to a customised installation. Up to eight NIBE air/water heat pumps can be connected to a control system.

NIBE KVR 10-F2120 1 M

Condensation water pipes for F2120. Different lengths, 1, 3 or 6 m.

NIBE ERS S10-400

The NIBE ERS S10-400 is a heat recovery ventilation unit with high temperature efficiency up to 92% and low energy consumption. The heat recovery ventilation unit is used in houses with areas up to approx. 300 m2.The NIBE ERS S10-400 is designed for installation with a NIBE ground source heat pump or a NIBE air/water heat pump for a complete heating and ventilation system. The heat recovery ventilation unit is easily controlled by the heat pump. The NIBE S Series is a natural part of your connected home. Smart technology adjusts the indoor climate automatically while you’re in complete control from your phone or tablet. Giving maximum comfort and minimum energy consumption, while doing nature a favour at the same time.

NIBE SMO 40

The NIBE SMO 40 gives optimised control of the climate system and is designed to be combined with NIBE air/water heat pumps to provide an integrated climate system for homes and properties. The NIBE SMO 40 offers maximum flexibility when it comes to system solutions. The control module can be connected to components such as a water heater, additional heat sources and other accessories specific to a customised installation. Up to eight NIBE air/water heat pumps can be connected to a control system. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

NIBE ERS 20-250

The NIBE ERS 20-250 is a heat recovery ventilation unit with high temperature efficiency up to 92% and low energy consumption. The heat recovery ventilation unit is used in houses with areas up to 200 m2. The NIBE ERS 20-250 is designed for installation with a NIBE ground source heat pump or a NIBE air/water heat pump for an integrated heating, hot water and ventilation system. The heat recovery ventilation unit is easily controlled by the heat pump. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected lifestyle. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

Height (mm)

1070

Depth (mm)

610

Net weight (kg)

150

Product efficiency class room heating, 35 °C

A+++

Product efficiency class room heating, 55 °C

A++

System efficiency class room heating, 55 °C

A+++

System efficiency class room heating, 35 °C

A+++

Refrigerant amount, CO2 equivalent (ton)

5,01

User manual
Installer manual
Product leaflet
Product catalogue Air/water heat pumps
Product catalogue NIBE Heat pumps for large apartment buildings and commercial applications
Energy Labels NIBE F2120-16 + VVM500
Energy Labels NIBE F2120-20 + VVM500
Consumer information leaflet NIBE F2120
