NIBE exhaust air heat pump

NIBE F750

Exhaust air heat pump
  • Product information
  • Advantages

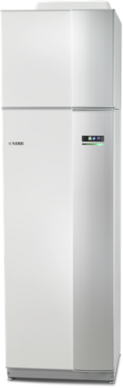

NIBE F750 is an intelligent exhaust air heat pump for multisystems. NIBE F750 provides heating, ventilation, heat recovery and hot water efficiently, simply and economically. With its attractive, stylish design and compact size, the heat pump is easy to accommodate and install.

The heat pump’s inverter control produces an extremely high and economical heat output. NIBE F750 is well insulated and energy efficient, which minimises heat loss and keeps energy consumption to a minimum. NIBE F750 is ready for connection to NIBE’s solar package and external energy sources. This multisystem can also be docked to several different accessories, e.g. the supply air module NIBE SAM 40.

Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

Integrated

All-in-one product

Flexible

One control module for the entire climate system and greater flexibility for several different systems and dockings

A simpler life

Connected home with smart technology for a simpler life

  • Functions
  • Accessories
  • Technical data
  • Document
NIBE F750

NIBE Smart Price Adaption

With Smart Price Adaption, the heat pump receives information about the electricity prices for the next 24 hours and then adapts the operation to these. The function is based on information about the hourly prices of the coming day from the electricity exchange NordPool Spot. The prices in combination with expected heating and hot water needs then automatically control the heat pump. This is in order to reduce energy costs and which in the long run contributes to a smaller environmental impact.

NIBE AXC 20

NIBE SCA 41

Docking kit for F750 with accumulator tank.

NIBE DEW 40

NIBE BAU 10

Wall console for wall mounting.

NIBE DEW 41

For docking a VPB 200 and NIBE F730 in houses where there is a heavy demand for hot water.

NIBE DKI 10

When NIBE F750 is installed in areas with low ceilings and you want to split the heat pump.

NIBE HTS 40

HTS 40 is an accessory that records humidity and temperature.

NIBE EF 45

Extension frame.

NIBE AXC 40

Accessory card. AXC 40 is used to enable connection and control of Mixing valve controlled additional heat, Pump for hot water circulation, Groundwater pump

NIBE RTS 40

Room sensor used to obtain a more even indoor temperature. RTS 40 has up to three functions: Show current room temperature in the heat pump's display. Option of changing the room temperature in °C. Makes it possible to change/stabilise the room temperature.

NIBE EME 20

Communication and control. EME 20 is used to enable communication and control between the inverter for solarcells and heat pump/indoor module/control module.

NIBE SAM 42

The NIBE SAM 40 is a supply air module specially designed to combine recycling of mechanical exhaust air with heated supply air together with the NIBE F750 exhaust air heat pump. The NIBE SAM 40 has a high fan capacity and low noise level thanks to its efficient low-energy fan. The built-in fan in the NIBE SAM 40 takes outdoor air and blows it into the house through the supply air inlet. The supply air is heated, if necessary. The NIBE SAM 40 is mounted independently with brackets on the wall. The NIBE SAM 40 can also be mounted on the NIBE VPB 200 water heater. Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected lifestyle. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time.

NIBE SCA 40

Docking kit for F750 with NIBE VPBS 300 and solar.

NIBE MODBUS 40

A NIBE heat pump can be controlled and monitored by external Modbus equipped equipment.

NIBE TOC 40 Top cabinet 345 mm

Top cabinet

NIBE TOC 40 Top cabinet 245 mm

Top cabinet

NIBE ECS 40

ECS 40 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

NIBE TOC 40 445 mm

Top cabinet

NIBE TOC 40 Top Cabinet 385-635 mm

Top cabinet

NIBE RMU 40

With RMU 40 you can control and monitor your Nibe heat pump from another room in the house.

NIBE PV

NIBE PV is an integrated solution which is based on a fully modular system with several basic sizes: 4 / 8 / 12 / 16 / 20 kW. Each basic package has nominal power of 4 kW and consists of 10 panels, mounting parts and an inverter with communication module, all of which are ready for installation. The solar package can easily be expanded with additional solar panels for optimum use of roof space.

NIBE PV comprises of monocrystalline silicon cell panels which use PERC technology, with an output of 400 Wp. The solar panels are elegant, all-black panels. NIBE PV harnesses sunlight all year round and converts it into electricity. NIBE PV can be connected to your NIBE heat pump* for maximum energy efficiency.

Thanks to smart technology, the product gives you control over your energy consumption and will be a key part of your connected home. The efficient control system automatically adjusts the indoor climate for maximum comfort, and you do nature a favour at the same time. * applies to systems which can be connected to NIBE Uplink and myUplink.

NIBE ECS 41

Extra heating circuit (recommended 80-250 m2 floor heating). ECS 41 is used when heat pump is installed in houses with up to four different climate systems that require different flow line temperatures, for example, in cases where the house has both a radiator system and an under floor heating system.

Height (mm)

2210

Width (mm)

600

Depth (mm)

616

Net weight (kg)

235

Product efficiency class room heating, 35 °C

A++

Product efficiency class room heating, 55 °C

A++

System efficiency class room heating, 55 °C

A++

System efficiency class room heating, 35 °C

A++

Efficiency class water heating

A

Refrigerant amount, CO2 equivalent (ton)

1,312

Refrigerant amount, R407C (kg)

0,74

Declared tap profile

L

Amount of hot water 40 °C (l)

250

User manual (UHB)
Installer manual (IHB)
Installer manual (IHB) ( fr )
Product leaflet (PBD)
Product catalogue (KBR) Exhaust air from NIBE
Energy Labels (ELI) F750
Consumer information leaflet (CIL)
