NIBE product range

NIBE S2125

Air Source Heat Pump

Our most efficient Air Source Heat Pump yet

NIBE S2125 Air Source Heat Pump

NIBE S2125 is an intelligent, inverter-controlled air source pump. With NIBE indoor modules, it forms a very efficient climate system for your home. NIBE S2125 provides optimised savings as it automatically adapts to your home’s output requirements all year around.

Top Performing

Optimised seasonal performance factor and low operating costs.

Natural Refrigerant

Low environmental impact.

Low Noise Level

All new design for low noise level.

High Supply Temperature

Working range up to 75°C supply temperature and 65°C at an outdoor temperature of –25°C.

  • Product information
  • Advantages

NIBE S2125 is an intelligent inverter controlled air / water heat pump. With NIBE indoor modules, it forms a highly efficient climate system for your home. The heat pumpoperates with a natural refrigerant for a sustainable impacton the climate and the environment. It provides optimizedsavings because it automatically adapts to thehome's power needs.

NIBE S2125 has an optimised annual heating factor, which provides a low operating cost and hot water with high performance. The working area provides a single-flow temperature of up to 75°C. At an outdoor temperature of down to -25°C, up to 65°C is still delivered, while the sound level is low.

Together with the NIBE S-series indoor module with built-in wifi connection and the possibility of wireless accessories, it becomes a natural part of your connected home. The smart technology automatically adjusts the indoor climate and gives you complete control of the system from your smartphone or tablet. High comfort and low energy consumption - at the same time as you do nature a favour.

Natural Refrigerant

Low environmental impact.

Low operating costs

Optimized seasonal performance factor* and low operating costs.

Low noise level

New design for low noise level.

  • Technical Data
  • Documents
NIBE S2125-8 (1x230V)
NIBE S2125-12 (3x400V)

Height (mm)

1070

Width (mm)

1130

Depth (mm)

820

Net weight (kg)

163

Product efficiency class room heating, 35 °C

A+++

Product efficiency class room heating, 55 °C

A+++

System efficiency class room heating, 35 °C

A+++

System efficiency class room heating, 55 °C

A++

Refrigerant volume, CO² equivalent (ton)

0,0024

Installer manual (IHB)
Energy Labels (ELI) 12kW
Energy Labels (ELI) 8kW

Related Products

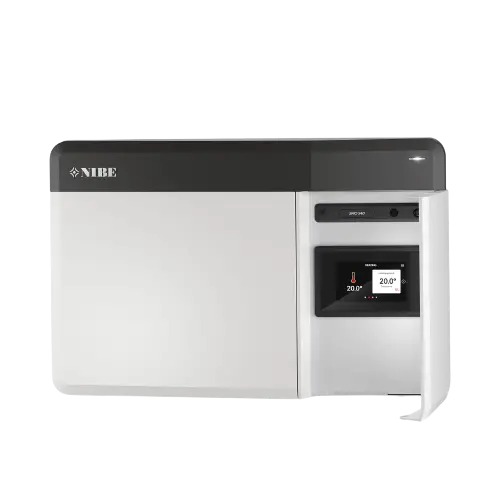

SMO S40

SMO S40

Our air source heat pumps, such as the S2125, are designed to be combined with an SMO S40 to create a highly efficient climate system for your home.

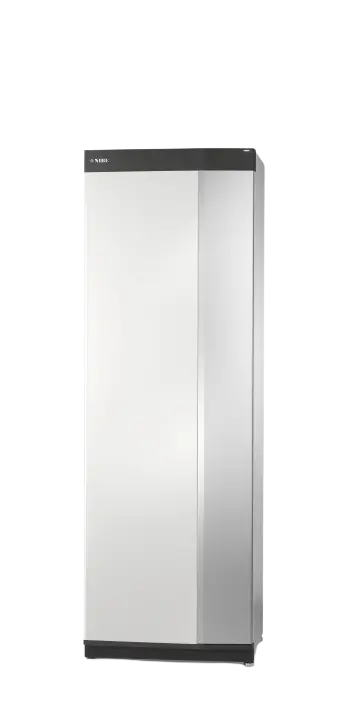

VVM S320

VVM S320

Our air source heat pumps, such as the S2125, are designed to be combined with a VVM S320, to create an efficient climate system for your home.

Connectivity »

Smart Accessories

Our S-Series range is designed to be combined with our smart home accessories.

myUplink

myUplink

Our S-Series range is designed to be used with myUplink, giving you the ability to further improve your indoor comfort whilst consuming less energy.

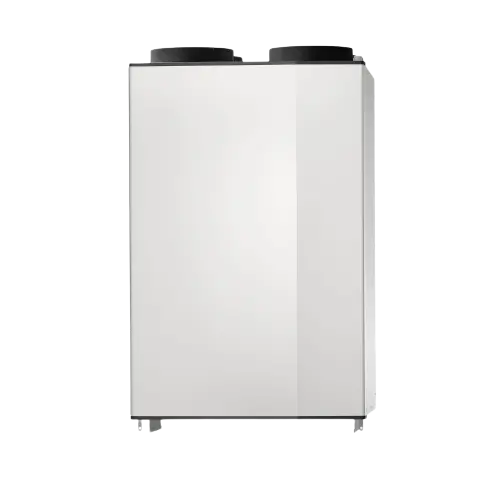

ERS S10-400
